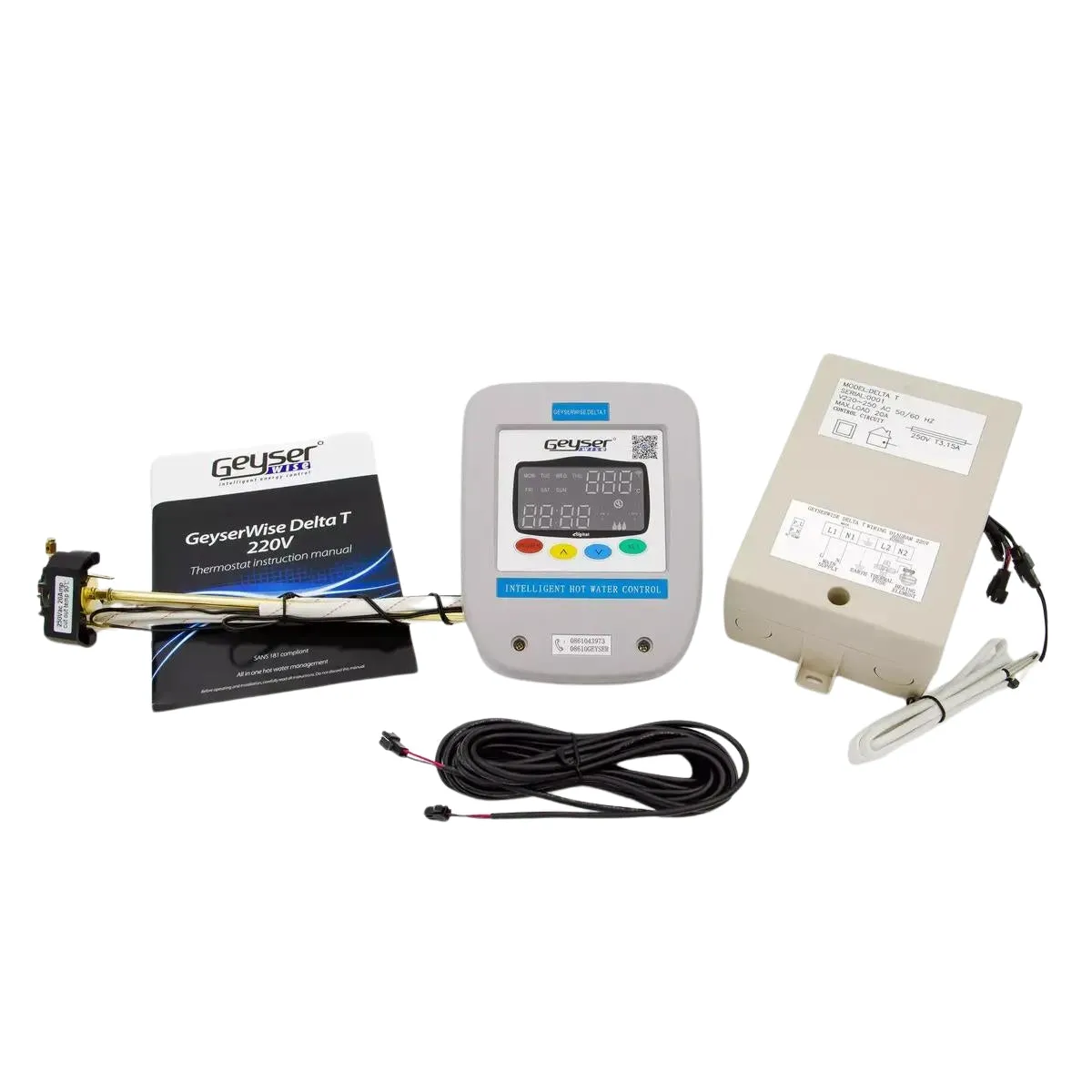

Smart Wifi Geyser Controller. Download the Tuya Smart App and manage your geyser from your phone anywhere in the world.
Using the app will enable you to:
- View your geyser temperatures
- Set your temperatures
- Switch Your Geyser On And Off from virtually anywhere.
- Manage Your Geyser like a wifi geyser controller.
Description
Use as a geyser timer or use as timer on a thermosyphon solar system.
- Clear display of water temperature, time, day, heating mode and malfunction conditions.
- Auto or manual heating.
- Easy temperature setting to your requirements (30 – 75°C) factory default is 55°C.
- Four different temperature settings.
- Daily programmable timer with four time settings.
- Error conditions alert by warning code E2 to E5 and E7.
- Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
Use as differential controller on 220V pumped solar water heating system
- Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
- Auto or manual heating.
- Easy temperature setting to your requirements (30 – 75°C) factory default is 55°C.
- Four different temperature settings.
- Daily programmable timer with four time settings.
- Error conditions alert by warning code E2 to E5 and E7 to E9.
- Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
- Differential controller for 220V pumped systems.
Technical Parameters
- Operating voltage 230VAC / 50HZ.
- Main relay contact rating 30AMP (Max 4KW).
- Operating voltage range 220V – 250V AC.
- Temperature display range 0 – 99°C (“-5” when below -5°C “EA” when above 99°C).
- High temperature warning above 84°C.
- Temperature setting ranges 30 – 75°C (heating water electrically).
- Heat failure – when increase at a rate of less than 4°C per hour.
- Mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
- Dry heat detection – empty cylinder.
- Temperature tolerance ± 2%.
- Temperature differential setting 1°C.
- Switching differential 6°C.
- Temperature probe failure detection for tank
- Temperature probe range for geyser is -30 to 130°C.
- Solar differential 7°C to 15°C – default is 7°C.
- Anti-Freeze 0° to 10°C. Default is 5°C
